GENERAL

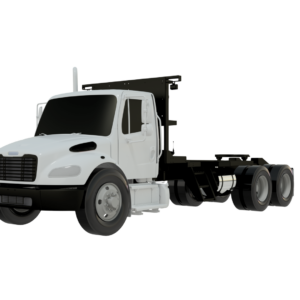

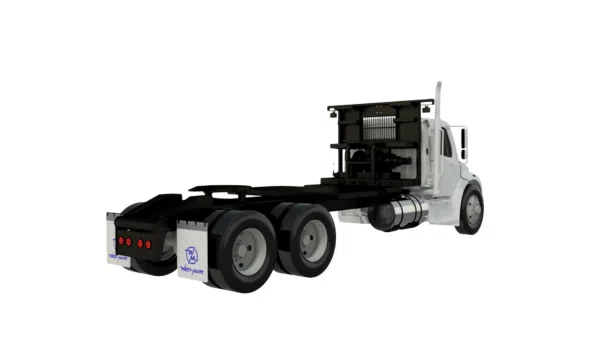

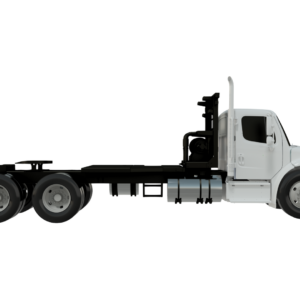

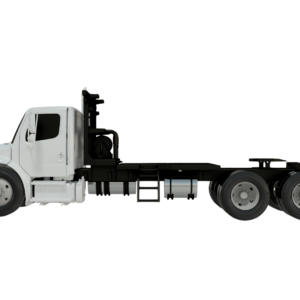

The following equipment shall be a new West-Mark Heavy Duty Deck Assembly for the back of a tractor.

INTENDED AREA OF OPERATION: Specify _______________________________.

TRACTOR:

New Freightliner model M2 106 conventional day cab tractor:

DRIVE:                    6 X 4

GVWR:                    52,000 lbs

WB:                 186″

CA:                  120″

OVERHANGE:         57″

Front Axle:                    12,000 lbs Capacity

Rear Axles:                   40,000 lbs Capacity, Air Suspension

Engine:                  Cummins ISL 300 HP and 860 lb/ft torque

Transmission:         Eaton® Fuller® 10-Speed FRO-14210C manual

• Cab color to be White
• Battery disconnect switch
• Maintenance free batteries
• Remote mounted positive & negative posts for jumpstart
• Vertical tailpipe mounted at RH side
• Coolant rated to -34F
• Engine block heater
• Quick disconnect fitting with tire inflation kit.
• Front tow hooks, eye(s), or pin (application varies based GVWR)
• LH and RH grab handles
• Air horn
• Electric horn(s)
• Daytime running lights
• LH and RH convex mirrors mounted under primary mirrors
• Heater, defroster, and air conditioner
• One (1) each 12V power supply in the dash
• Speedometer/Odometer capable of displaying in both miles and kilometer, with trip and hour meter.
• Adjustable tilt and telescoping steering column
• Back-up alarm
• AM/FM/WB radio with Bluetooth and Auxiliary inputs
• Air suspension driver’s seat and fixed 2-passenger seat with storage compartment
• Heated mirrors (flat and convex)
• Heated fuel/water separator
• Mud and snow tires on rear axle(s)
• Steel wheels

BODY BUILD-UP

• Headboard, structural steel, and diamond plate shall extend up to the tractor cab.
• Swing Arm- NONE (Swing arm electrical and air line cords are available upon request)
• Tail End- NONE. (An elevated ramp and/or roller cable guide is available as an option upon request)

• Fenders- NONE. (Available as option upon request)

LIGHTS AND WIRING

• Lighting, None to be installed; all lights to remain factory installed.
• Glad hands and electrical 7-way male plug.

MISC.

• Mudflaps, black rubber.
• One (1) operation and maintenance manual(s) in paper format and one (1) on CD ROM complete with:

– Operator & Maintenance Manual

– Calibration Chart (if Applicable)

– Equipment Parts List

– Misc. Vendor Literature / Manuals

• Vehicle Data Plate(GSA): None.

Any and all Brand Name parts mentioned in specifications above are subject to substitution of an equal part that is of a different brand. Other substitutions may also be made if said substitution does not affect the intended function of the vehicle’s mission and is equivalent or an upgrade as determined by West-Mark. All specified dimensions are nominal and may vary slightly.

F.O.B.: West-Mark (CAGE: 880W5)

581 Industry Way

Atwater, CA 95301. (F.O.B. destination available as option upon request.)
