GENERAL

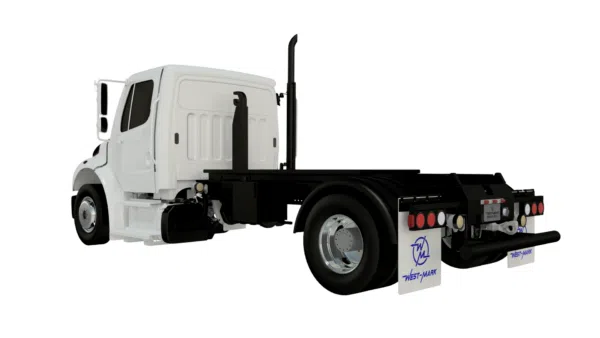

The following equipment shall be a new Hook Lift Loader for the back of a chassis used for lifting/loading skids onto the chassis and must meet ANSI Z245.1.

INTENDED AREA OF OPERATION: Specify _______________________________.

INTENDED USE: Highway and gravel roads.

TRACTOR:

New Freightliner model M2 106 conventional day cab tractor:

DRIVE:                    6 X 4

GVWR:                    58,000 lbs

Front Axle:                    18,000 lbs Capacity

Rear Axles:                   40,000 lbs Capacity, Spring Suspension

Engine:                  Cummins ISL 300 HP and 860 lb/ft torque

Transmission:         Eaton® Fuller® 10-Speed FRO-14210C manual

• Cab color to be White
• Battery disconnect switch
• Maintenance free batteries
• Remote mounted positive & negative posts for jumpstart
• Vertical tailpipe mounted at RH side
• Coolant rated to -34F
• Engine block heater
• Quick disconnect fitting with tire inflation kit.
• Front tow hooks, eye(s), or pin (application varies based GVWR)
• LH and RH grab handles
• Air horn
• Electric horn(s)
• Daytime running lights
• LH and RH convex mirrors mounted under primary mirrors
• Heater, defroster, and air conditioner
• One (1) each 12V power supply in the dash
• Speedometer/Odometer capable of displaying in both miles and kilometers, with trip and hour meters.
• Adjustable tilt and telescoping steering column
• Back-up alarm
• AM/FM/WB radio with Bluetooth and Auxiliary inputs
• Towing extended/roadside service warranty, 1 year/unlimited miles/km, $550 cap (U.S. Domestic only)
• Air suspension driver’s seat and fixed 2-passenger seat with storage compartment
• Heated mirrors (flat and convex)
• Heated fuel/water separator
• Mud and snow tires on rear axle(s)
• Steel wheels

BODY BUILD-UP

• Hitch- NONE. (Available as option upon request)
• Hydraulic reservoir to be filled to operating capacity with hydraulic oil.

MISC.

• Reflectors, per D.O.T.
• Conspicuity Striping, per D.O.T.
• Fenders- NONE. (Available as an option upon request)
• Mudflaps, black rubber.
• Mudflaps at Front Drive tires- None. (Available as option upon request)
• Cabinets- NONE. (Available as an option upon request)
• Tire Pressure Monitoring System- NONE. (Available as option upon request)
• Chain Hooks- NONE. (Available as an option upon request)
• Paint- NONE. (Available as an option upon request)
• One (1) operation and maintenance manual(s) in paper format and one (1) on CD ROM complete with:

– Operator & Maintenance Manual

– Calibration Chart (if Applicable)

– Equipment Parts List

– Misc. Vendor Literature / Manuals

– One (1) Set(s) manuals in PAPER format.

• RFID Tag- NONE. (Available as option upon request)
• Government data plate with contract information, if required by contract.
• GSA PURCHASED VEHICLE DATA PLATE (per Federal Standard 307AQ) installed if required.
• Power Cord, one (1) for use w/ chassis engine block heater.
• UID (Unique Identification) plate installed, if required by contract.
• Operator Training Guide in each manual containing detailed operating instructions of all functions with photos.
• Testing and QC, internal final Inspection performed prior to and in preparation for an Inspection.
• Vehicle shall be road-tested

Any and all Brand Name parts mentioned in specifications above are subject to substitution of an equal part that is of a different brand. Other substitutions may also be made if said substitution does not affect the intended function of the vehicle’s mission and is equivalent or an upgrade as determined by West-Mark. All specified dimensions are nominal and may vary slightly.

Warranty: The unit shall be free from defects in material and workmanship for ONE (1) year.

F.O.B.: West-Mark (CAGE: 880W5)

581 Industry Way

Atwater, CA 95301. (F.O.B. destination available as an option upon request.)
